Ultra 1/2" CD valves (pair) (SPR02)

  • Ultra SPR02
  • RRP:£24.17 + VAT
  • Trade Price:Login Required
  • Postage:...
  • Availability:...
  • Despatch:...
  • Returns:...

  • Product Description:

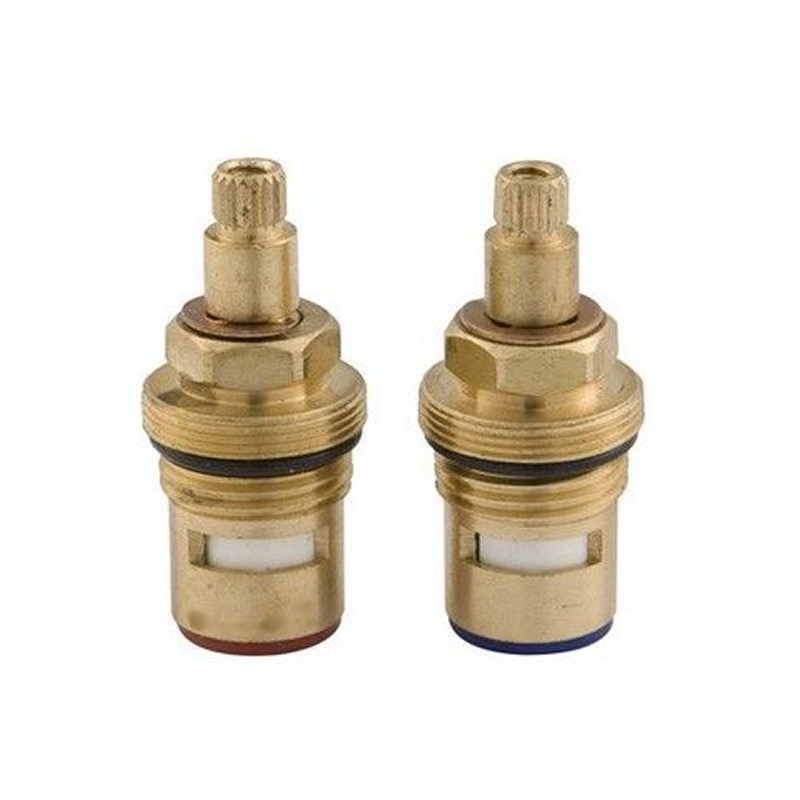

    Ultra 1/2" CD Valves (pair).

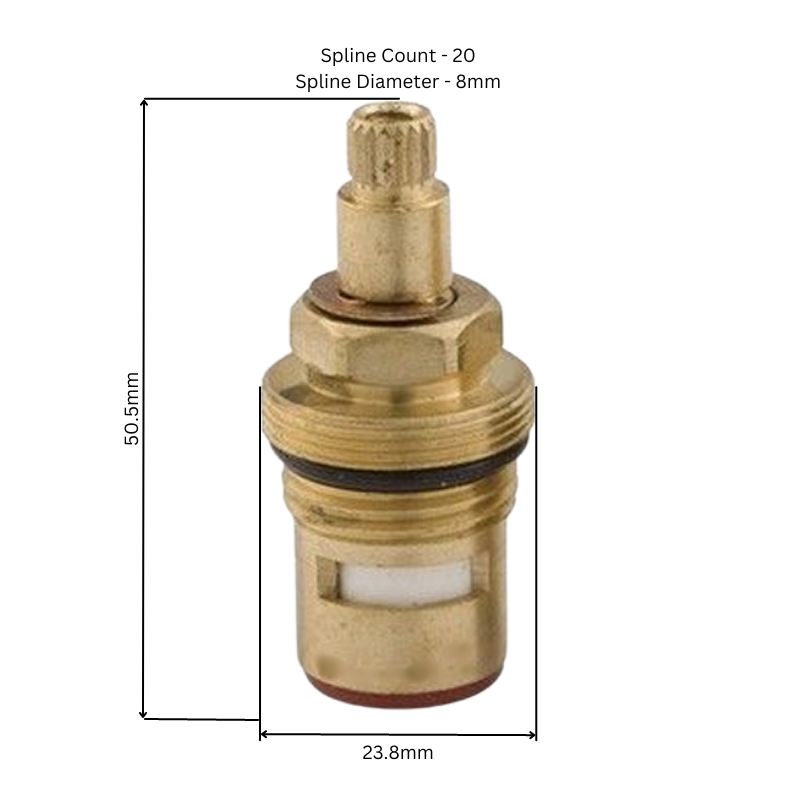

    Cartridge Measurements:
    Total Length (including bottom seal): 50.5mm
    Diameter at Widest Point: 23.8mm (at flange thread)
    Spindle Length (from top of hex to top of splines): 16mm
    Top Spline Diameter: 8mm
    Top Spline Teeth / Notches: 20
    Lower Thread Diameter: 20.5mm (1/2" BSP)
    Barrel Diameter Below Lower Thread: 18.3mm
    Bottom Seal Colour: Red & Blue
    Close Direction: Clockwise Close & Anti-Clockwise Open
    Turn: Quarter Turn (1/4 Turn) 90°
    Diameter of Hex: 17mm

    Product Specifications:

    • Brand Ultra
    • Name Ultra 1/2" CD valves (pair) (SPR02)
    • SKU / MPN Ultra SPR02
    • GTIN / EAN 5055146121022
    • Categories Ultra Shower Cartridges
      Shower Cartridges
    • Colour Brass
    • Fitment Screw In
    • Size 1/2"
    • Sub Type Ceramic Disc
    • Type Flow
    • Condition Brand new
    • Manufacturer Guarantee Yes

  • The Ultra 1/2" CD valves (pair) (SPR02) will fit the following 1 product.

    List(s) are sorted by product type and then alphabetically.

    Hover overTap any icon below to see a preview of that model.

    May fit other products.

    If you are unsure of your product model, or would like more information, please contact us.
